FPV Drone Parts

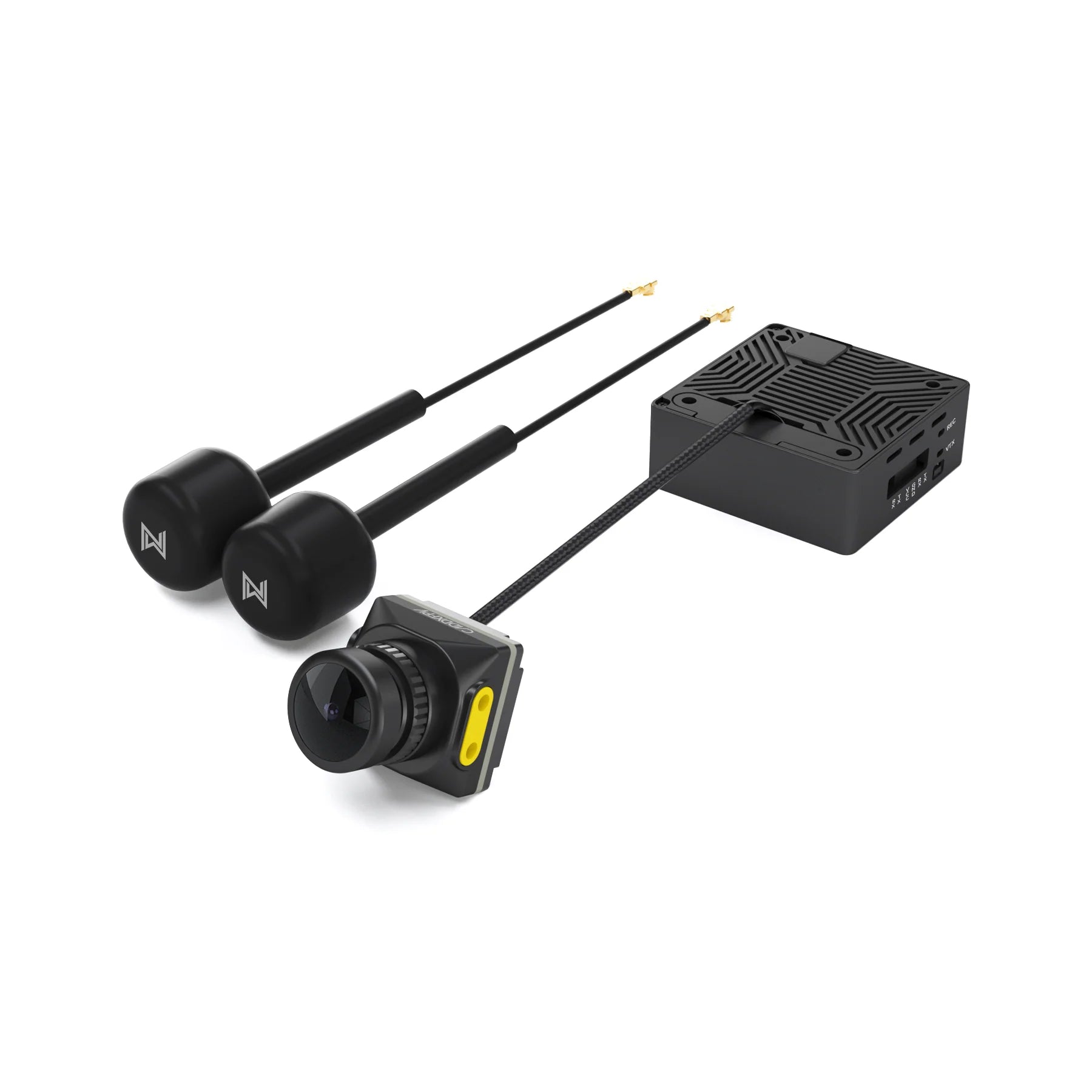

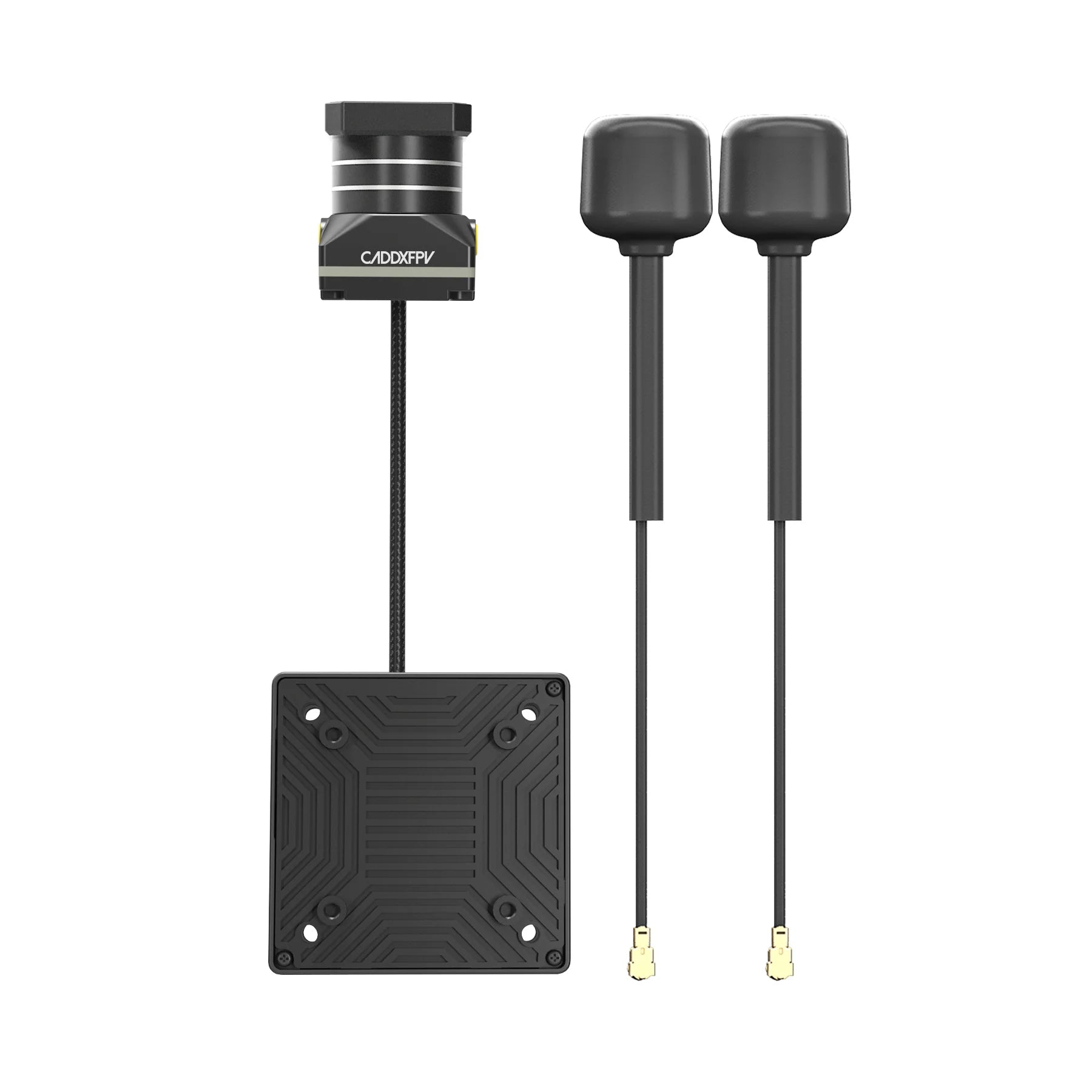

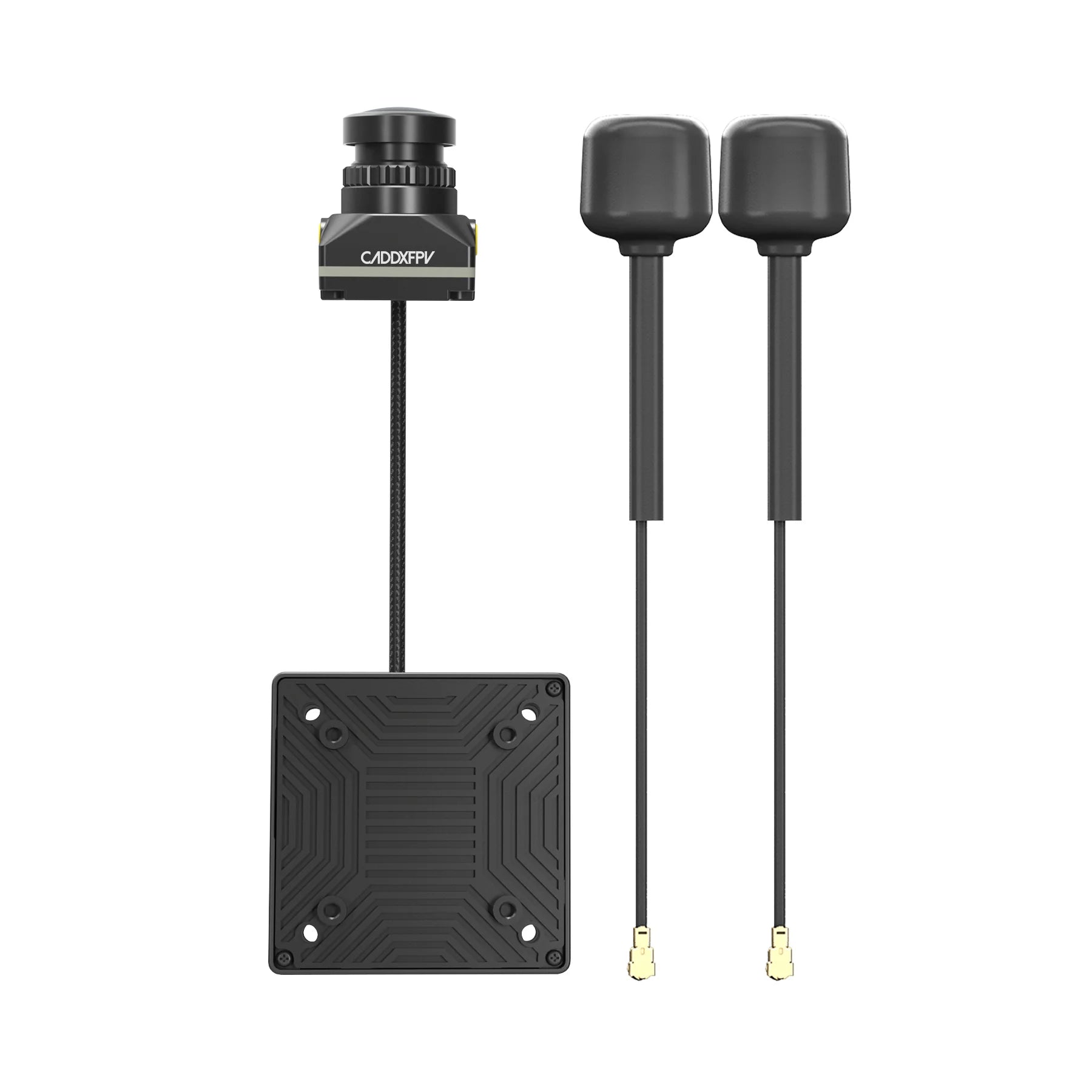

CADDX Walksnail Moonlight kit -4K FPV System
Original price was: $199.00.$189.00Current price is: $189.00.
Availability: 1000 in stock
features：
| ●4k/60FPS | ●Startlight Camera |
| ●Built-in EIS | ●Support Gyroflow |
| ●Sd card | ●FOV 160° |
| ●Dual Antennas | ●7.4V-25.2V |
Bullet Points:
- Supports 4K/60fps. ensuring that FPV embraces true 4K. Shooting stable and HD videos without unnecessary latency. bring pilots a smoother FPV experience.
- Feature starlight sensor. to improve image quality and performance in low-light scene shooting. ensuring night vision shooting and eliminating frequent camera switching.
- Built-in EIS and supports Gyroflow technology. taking you a smooth and stable video quality. to facilitate and enjoy freestyle fly.
- Comes with silicone pads for mounting the camera. ensuring stability and minimizing camera shake for perfect captures.
- Supports manual shutter and manual ISO settings. take perfect photos regardless of any lighting limits.
- The moonlight camera has a 160° FOV. providing you with a more natural and real picture for the ultimate flying experience.

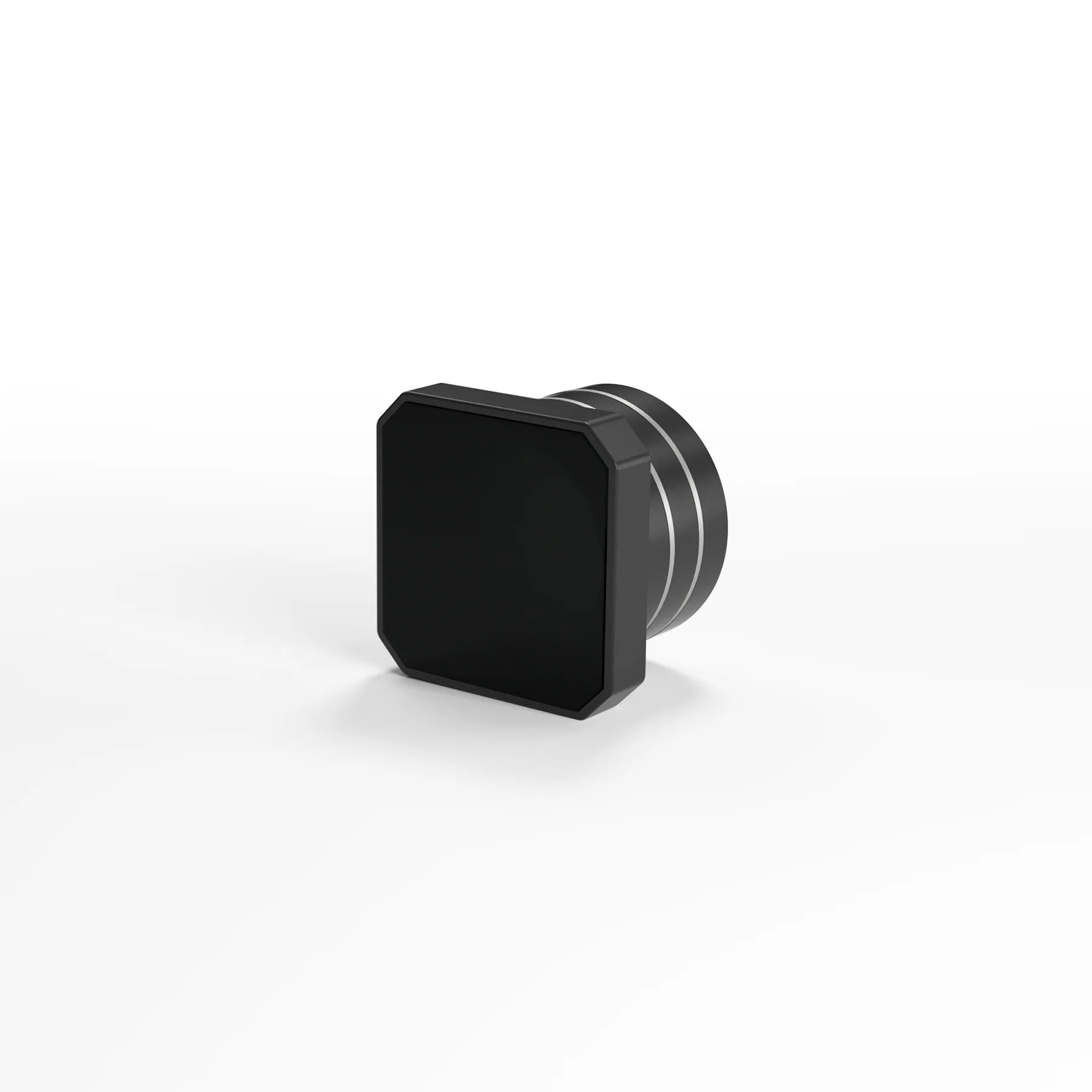

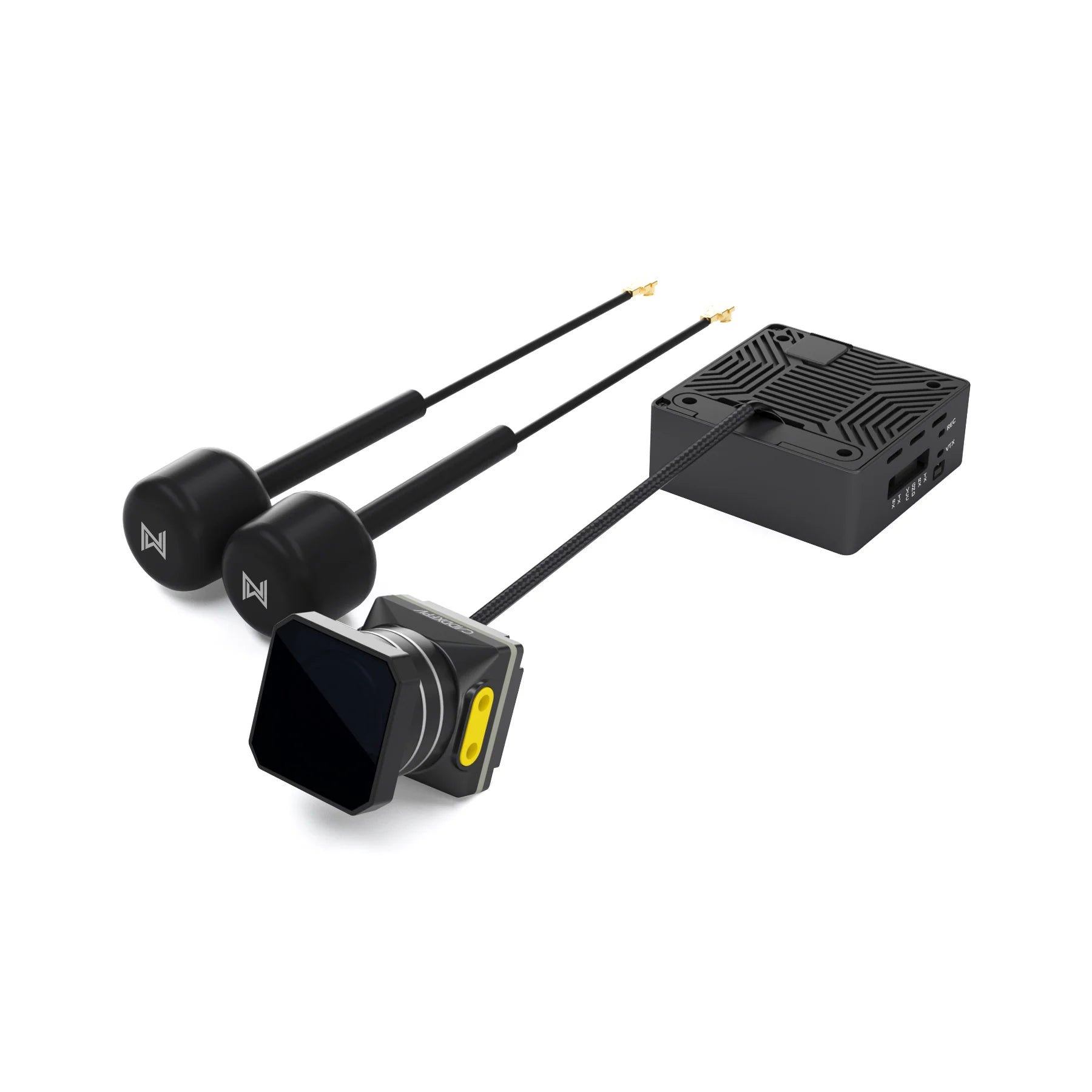

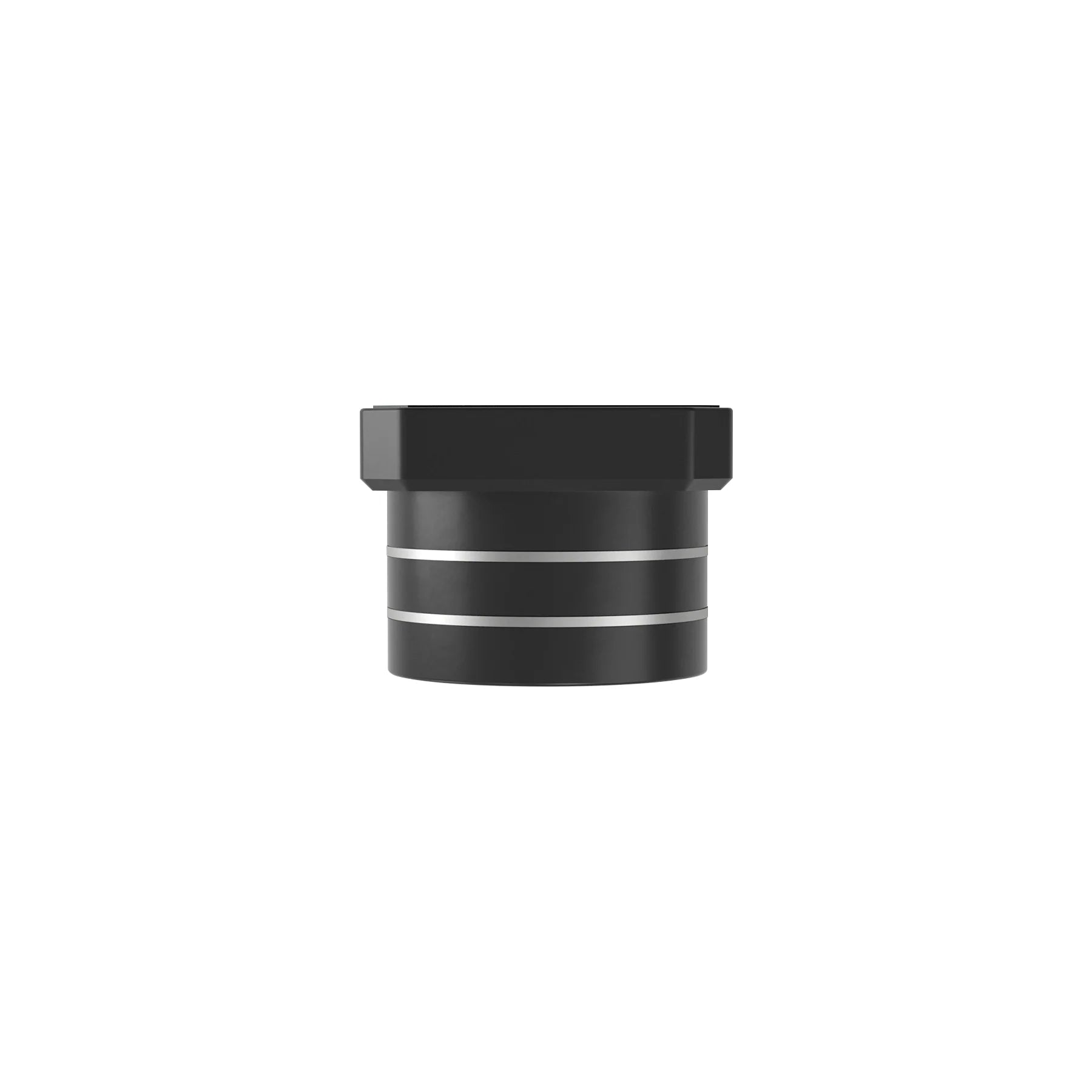

- Come with ND8 filters to meet the needs of more different shooting scenes. to bring different effects to the shooting.
Q: When will it be shipped?
A: In order to give pilots a better experience. Currently. each order will be shipped within 30 working days.
Q: Can moonlight vtx use other WS cameras?
A: No. but other vtx can use moonlight camera
| Specification | |
| Model | Moonlight kit |
| Firmware name | AvatarMoonlight_Sky_X.X.X |
| Communication Frequency | 5.725-5.850GHz |
| Transmitter Power (EIRP) | FCC:<30dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm |
| 1/O Interface | JST1.0*4(Power in)JST0.8*6(USB) .Micro SD card Slot；IPEX-1 |
| Sensor | Starlight sensor |
| FOV | Max 160° |
| Aperture | F2.1 |
| Shutter | Rolling shutter |
| ISO | 100-25600 |
| Recording resolution | 4K@30/60fps.2.7K@30/60fps.1080p@100/60fps.720p@60fps |
| Max Mbps | 150Mbps |
| Video format | MP4 (H.264) |
| 3D DNR | Support |
| Gyroflow | Support |
| Built-in EIS | Support |
| Wide Power Input | 7.4V-25.2V |
| Power consumption | 12V@1.4A. 8V@2.2A |
| Memory card type | U3 MicroSD. Max 256G |
| Camera size | 19.6mm*19mm*24mm |
| VTX size | 15.3mm*34.5mm*34.5mm |
| VTX Installation hole distance | 20*20mm/25*25mm (M2) |
| Weight | 38.5g(Antenna not included) |
| OSD | Canvas mode |
| Latency | Average delay 22ms |
| Antenna | 2 (IPEX) |
| VTX Antenna | |
| model | avatar V2 antenna |
| Polarization | LHCP |
| Frequency range | 5600MHz-6000MHz |
| Average Gain | 1.9dBi |
| VSWR | ＜1.5 |
| Input Impedance | 50Ω |
| Interface | IPEX-1 |
| Dimension | R15 X 45mm （without cable） |
| Weight | 2g |

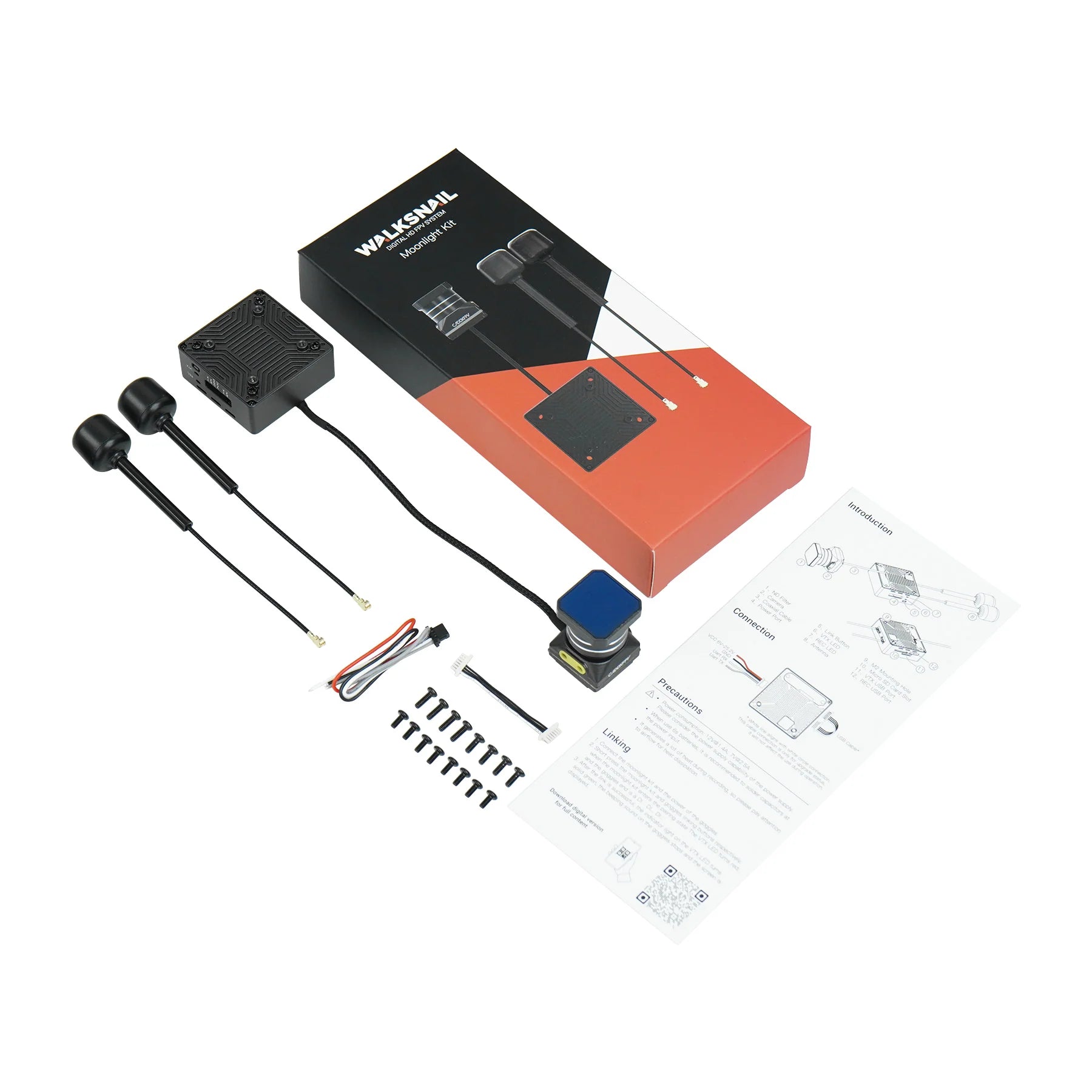

Packing List：
