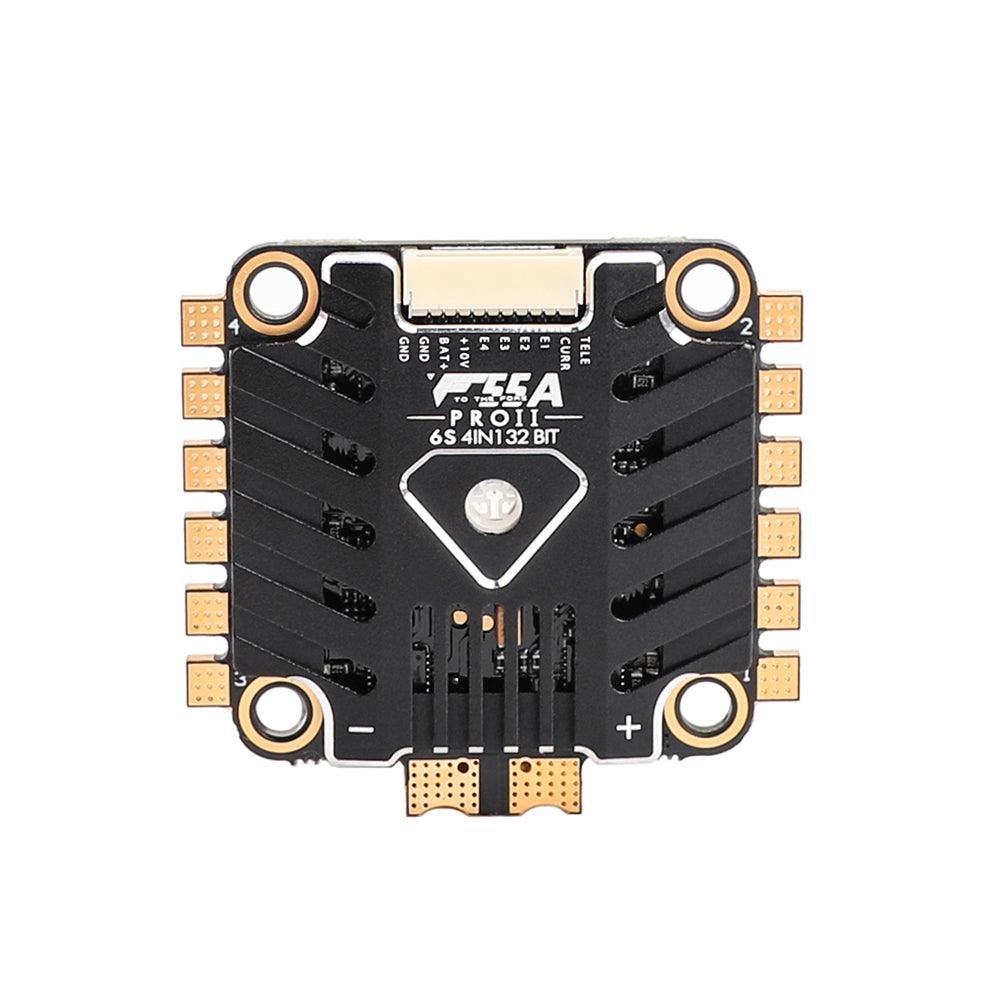

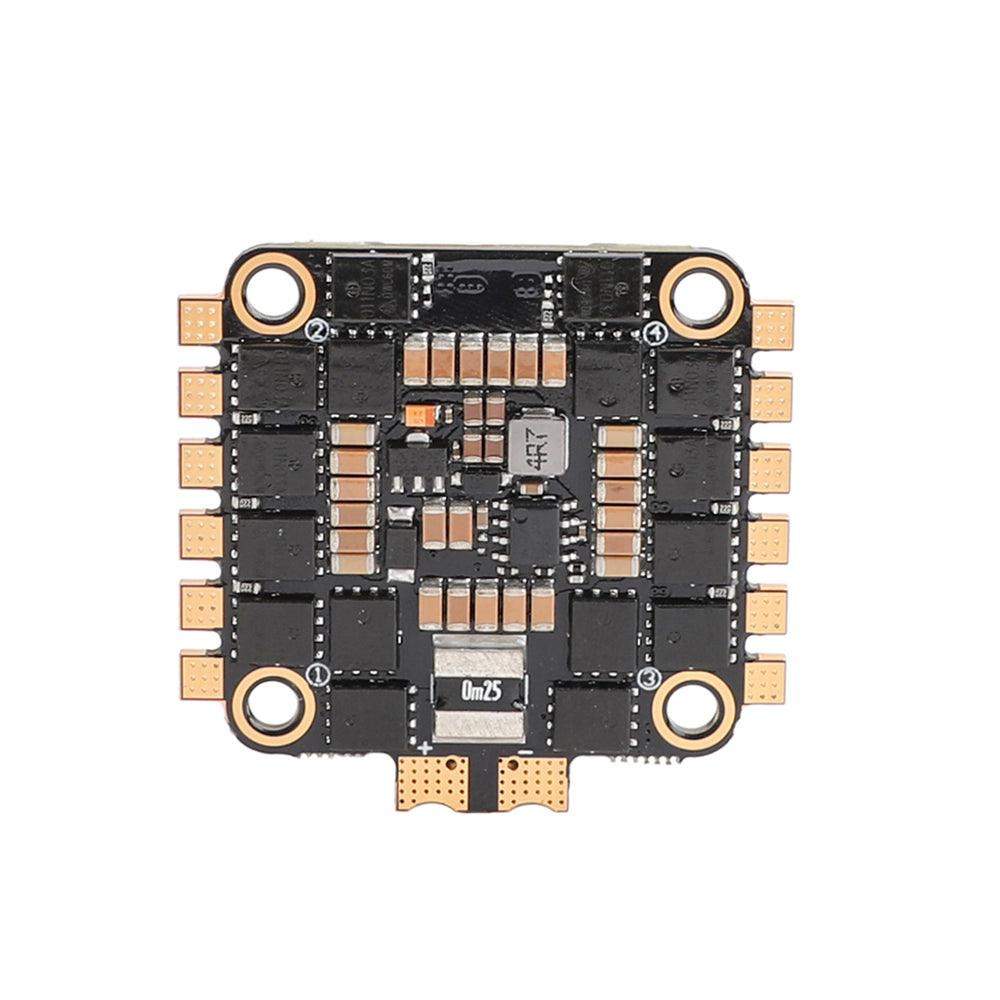

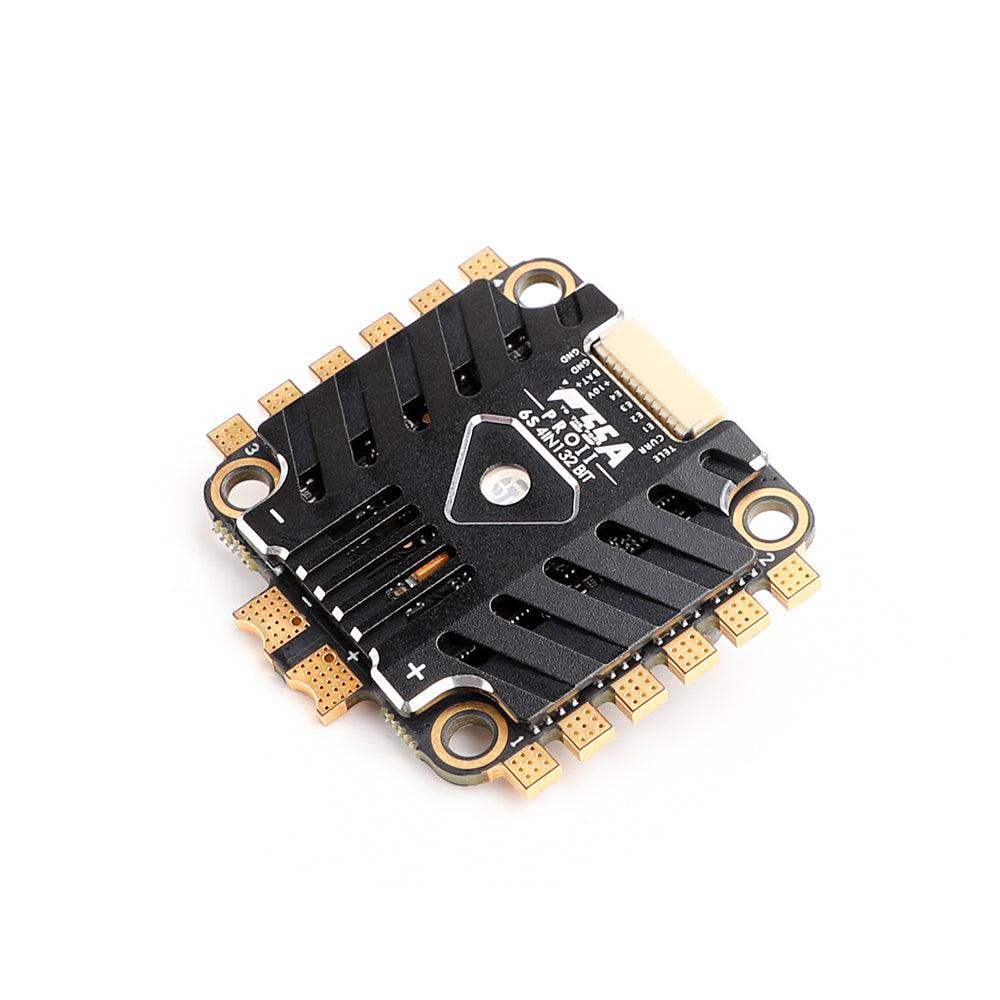

F55A Pro II 55A 3-6s AM32 4-in-1 ESC w/ BEC

The TMOTOR F55A Pro II esc updates the original 55A esc

with a new heatsink design. LED. and increased the BEC current to 10V@2A.

Fully capable of pushing 6s with 75A burst and a sustained 55A current draw.

Equipped with the latest in ESC technology

such as 32-bit capability and AM32 firmware.

Unique Point

• Explosive power
• Fast response
• Prominent reliability

Specifications

• Input Voltage: 2-8S (8.4-33.6V)
• MCU: STM32F405RGT6
• IMU: ICM20602
• OSD: Yes
• Blackbox: 16MB Onboard Flash
• UARTs: 6
• ESC Connections: 6
• Firmware: BetaFlight Target: T-Motor F4
• BEC: 5V 2A
• LC Filter: Yes
• Current Sensor: Esc Telemetry / Current ADC
• Buzzer: Pads
• Barometer: No
• Dimensions: 37x37x7mm
• Mounting Pattern: 30.5×30.5mm
• Weight: 7g

ESC

The F55 Pro II updates the original F55 with a new heatsink design. LED. and increased the BEC current to 10V@2A.

Fully capable of pushing 6s with 75A burst and a sustained 55A current draw. Equipped with the latest in ESC technology such as 32-bit capability and BLHeli32 firmware.

Specifications

• Continuous current: 4*55A
• BLHeli_32 32bit
• Burst current: 4*75A
• BEC Output: 10V @2.0A
• Size: 45x41x7.3mm
• Weight: 17.5g (Including Heatsink)
• Support DSHOT150/300/600/1200

Specification
