FC/ESC Stack, FPV Drone Parts
F7 HD+F55A-Pro-II-30.5×30.5-Stack For FPV Drones
$137.90
Availability: 1000 in stock

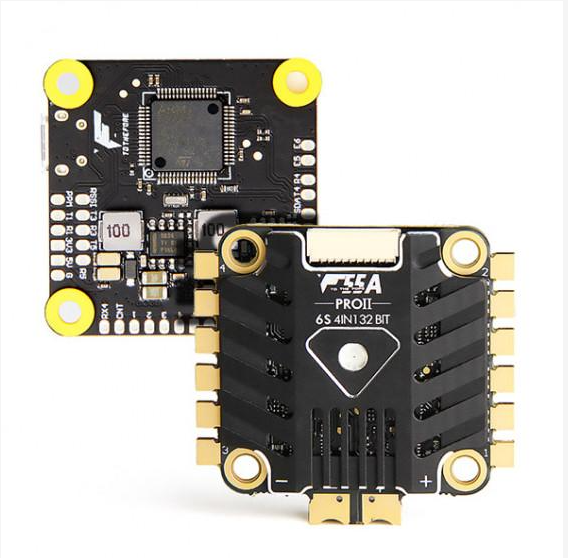

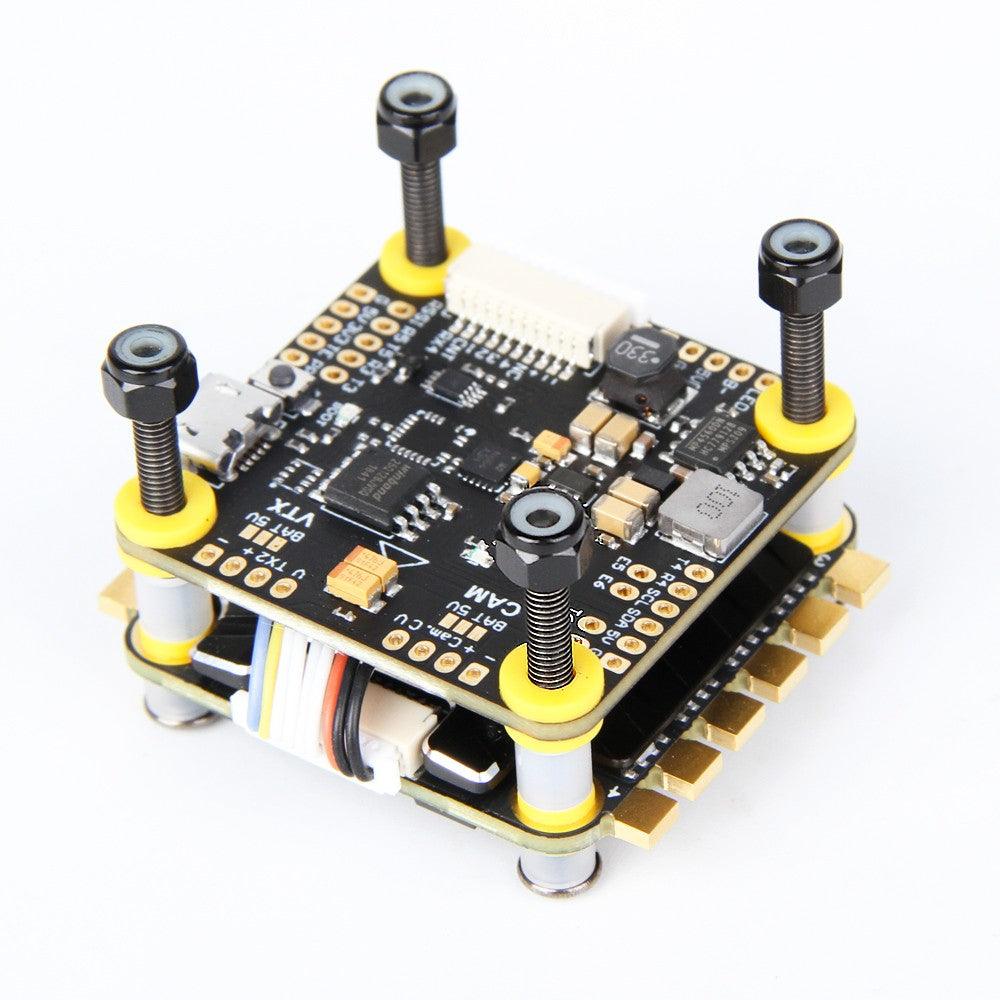

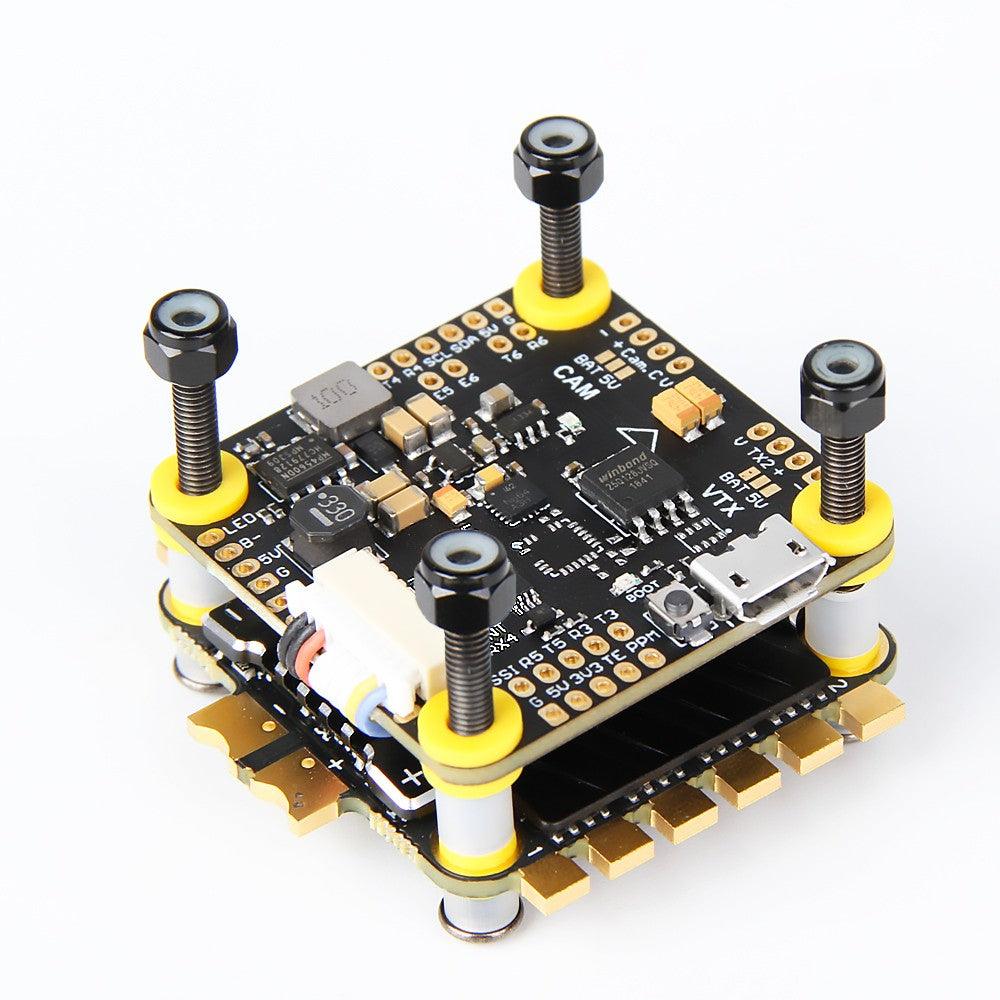

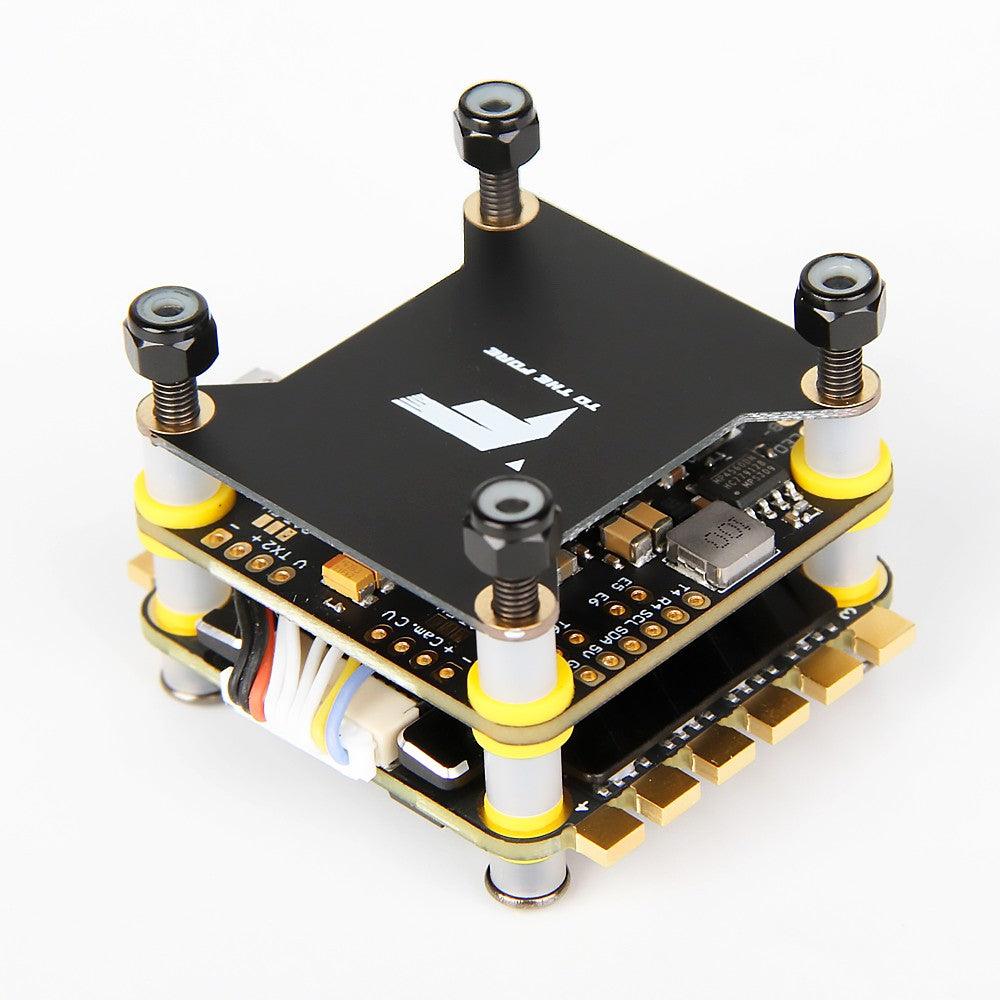

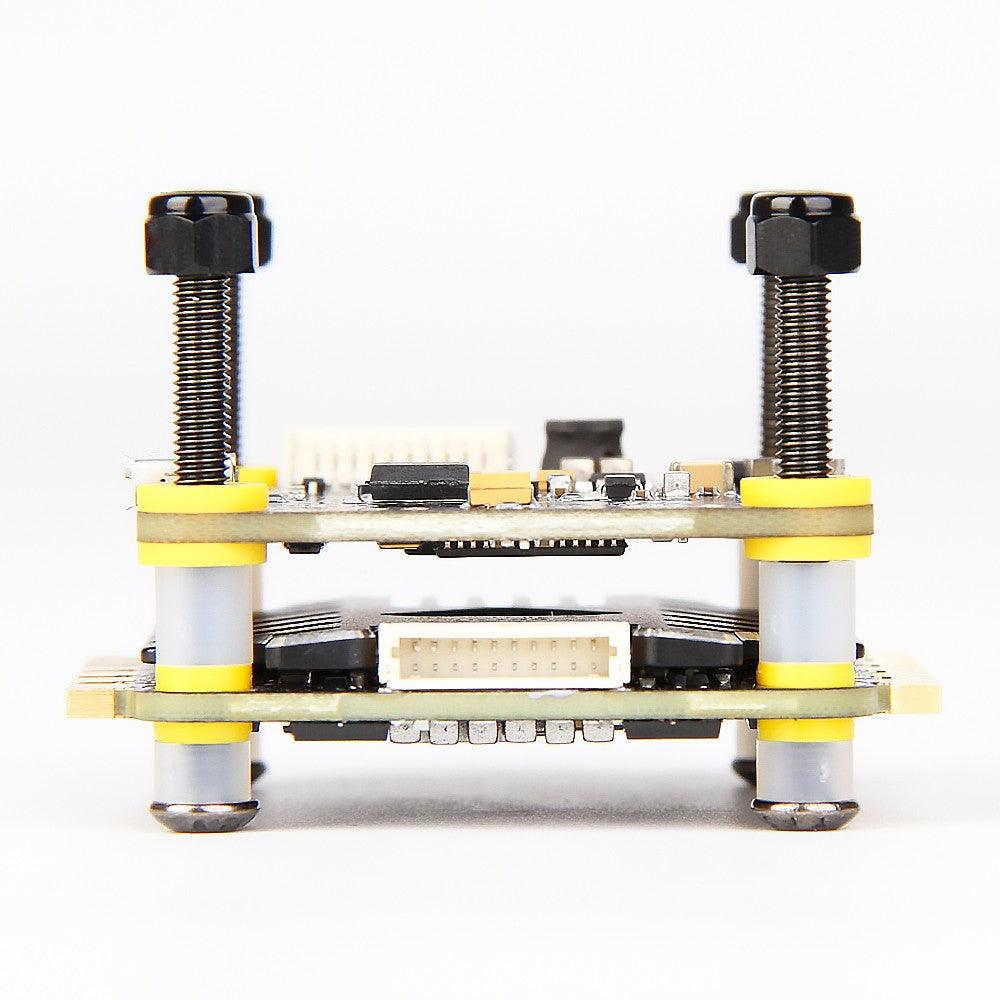

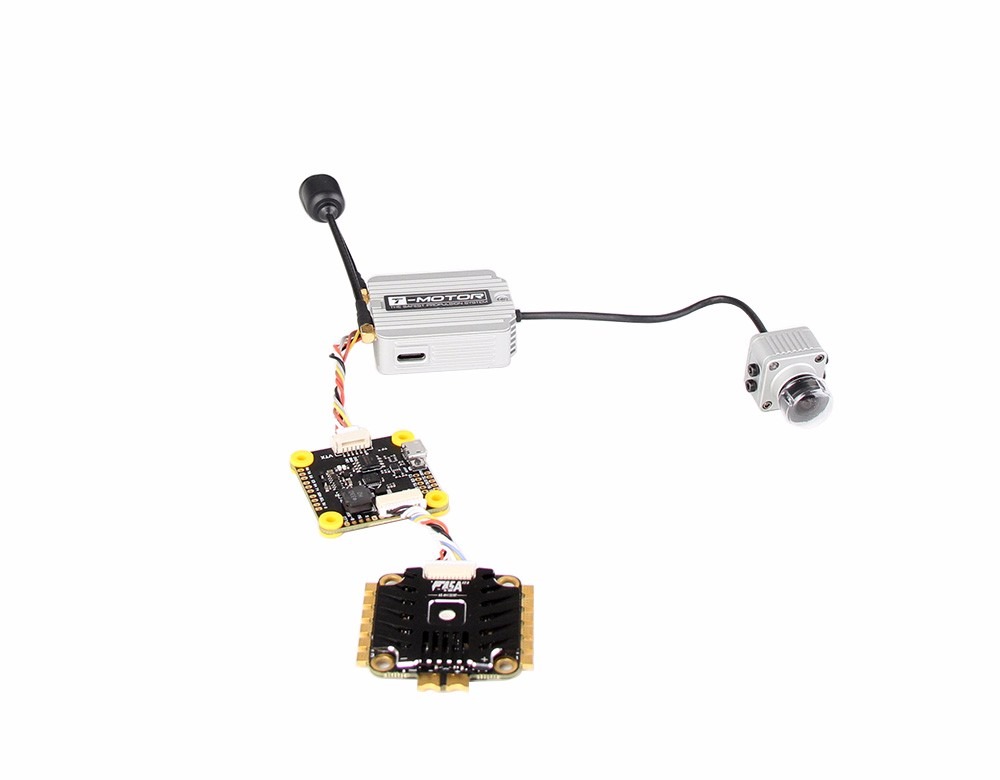

This stack contains the Cable to support DJI FPV Air Unit. .The T-Motor F7 HD Stack comes with the F7 HD FC and a F55A PRO II ESC.Will give you optimized performance and seamless integration in your fpv electronics stack. Design the F7 FC support the DJI FPV Air Unit.
1. Optimized performance and seamless integration
2. Specially customized for DJI HD VTX system
1. Optimized performance and seamless integration
2. Specially customized for DJI HD VTX system
TMOTOR’s powerful F7 HD Flight Controller combined with the T-Motor F55A Pro II ESC will give you optimized performance and seamless integration in your fpv electronics stack.
Design for analog devices.
Specifications
ESC
- Support: DSHOT150/300/600/1200
- Weight: 17.3g (including heatsink)
- Continuous Current: 4*55A
- Firmware: AM_32 32bit
- BEC Output: 10V @ 2.0A
- Burst Current: 4*75A
- Size: 45x41x7.3mm
FC
- Firmware: TMOTOR F7 (Betaflight)
- Master Chip: STM32F722RET6
- Mounting Hole: 30.5×30.5mm
- BEC: 5V 2A. 10V 2A
- Input Voltage: 3-6S
- Size: 37x37mm
- Gyro: BMI270
- Weight: 8.4g
- Flash: 16MB
| Specification | F7 HD +F55A Pro II-30×30 Stack |
|---|
