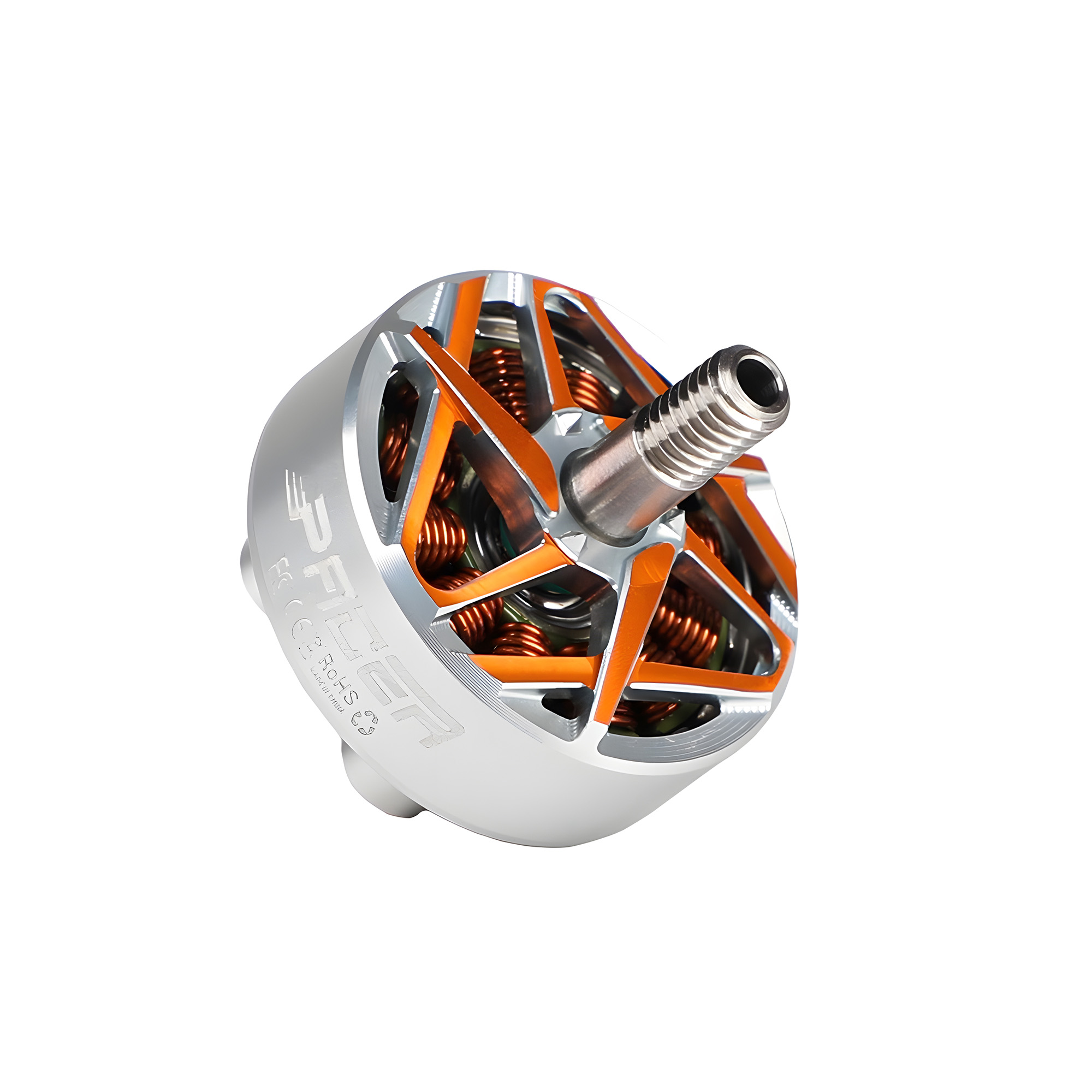

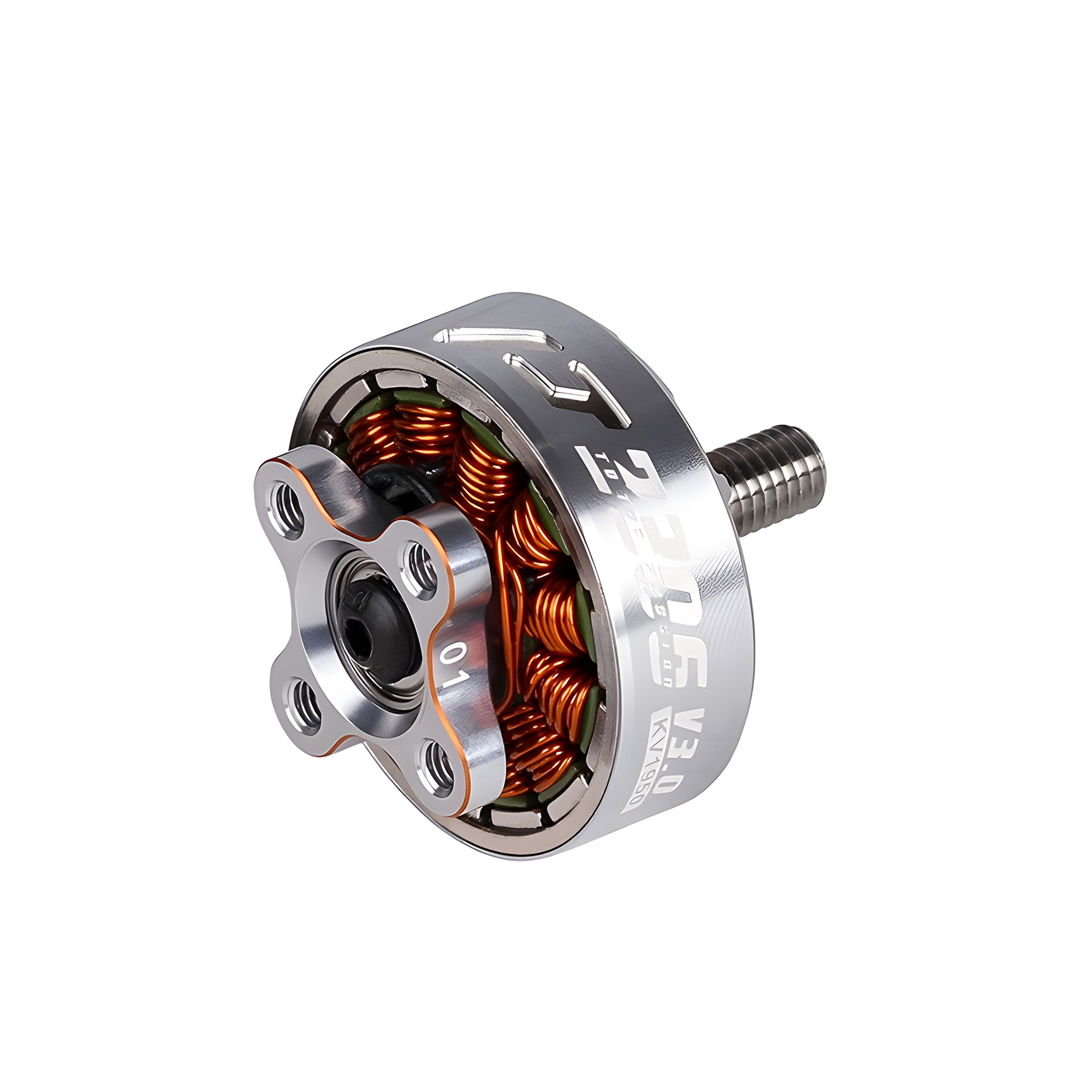

PACER V3 P2306 Unibell FPV Motor For 5inch Freestyle Drones

The TMOTOR PACER V3 P2306 Powerful Freestyle T-Motor has become one of the most popular motors in the market.

TMOTOR has updated and upgraded their Pacer motor to V3!

The 2306 version of the Pacer V3 has improved componentsand a unibell design to give your freestyle quadcopter extreme power.

This motor features a high throttle for precious control and is suitable when flying in bigger spaces!

Unique Point

• For 5″ freestyle drone

• Unibell design


• Unique hollow-carved design

• Recise and efficient

• Smooth experience with strong torque

Recommended

• Frame: 5″ Quadcopter

• ESC: TMOTOR FPV P50A 4 IN 1 ESC

• Compatible Propellers:  TMOTOR FPV P49436 propellers

• Battery: 4S 1550Mah 120C/6S 1300Mah 120C

• Takeoff Weight: 700g with 4S Battery/720g with 6S Battery(Subject to actual take-off weight)

Specification

Specifications

1750KV

• Weight Including Cables (g): 32g
• Motor Dimensions: 28.6 x 30mm
• Peak Current (60s): 34.8A
• Max. Power (60S): 864W
• Rated Voltage (Lipo): 6S
• Idle Current (10V): .85A
• Lead: 20#AWG 150mm
• Configuration: 12N14P
• Shaft Diameter: 4mm

1950KV

• Weight Including Cables (g): 32g
• Motor Dimensions: 28.6 x 30mm
• Max. Power (60S): 1000W
• Peak Current (60s): 40.4A
• Rated Voltage (Lipo): 6S
• Idle Current (10V): 1.2A
• Lead: 20#AWG 150mm
• Configuration: 12N14P
• Shaft Diameter: 4mm

2550KV

• Weight Including Cables (g): 32g
• Motor Dimensions: 28.6 x 30mm
• Peak Current (60s): 38.8A
• Max. Power (60S): 634W
• Idle Current (10V): 1.95A
• Rated Voltage (Lipo): 4S
• Lead: 20#AWG 150mm
• Configuration: 12N14P
• Shaft Diameter: 4mm

Includes

• 1x T-Motor PACER V3 P2306 Powerful Freestyle Motor  (1750KV. 1950KV. or 2550KV)
• 1x Hardware Set
