T-MOTOR AT8020 55CC Brushless Motor – 5500W Peak Power for VTOL & UAV 180KV/210KV

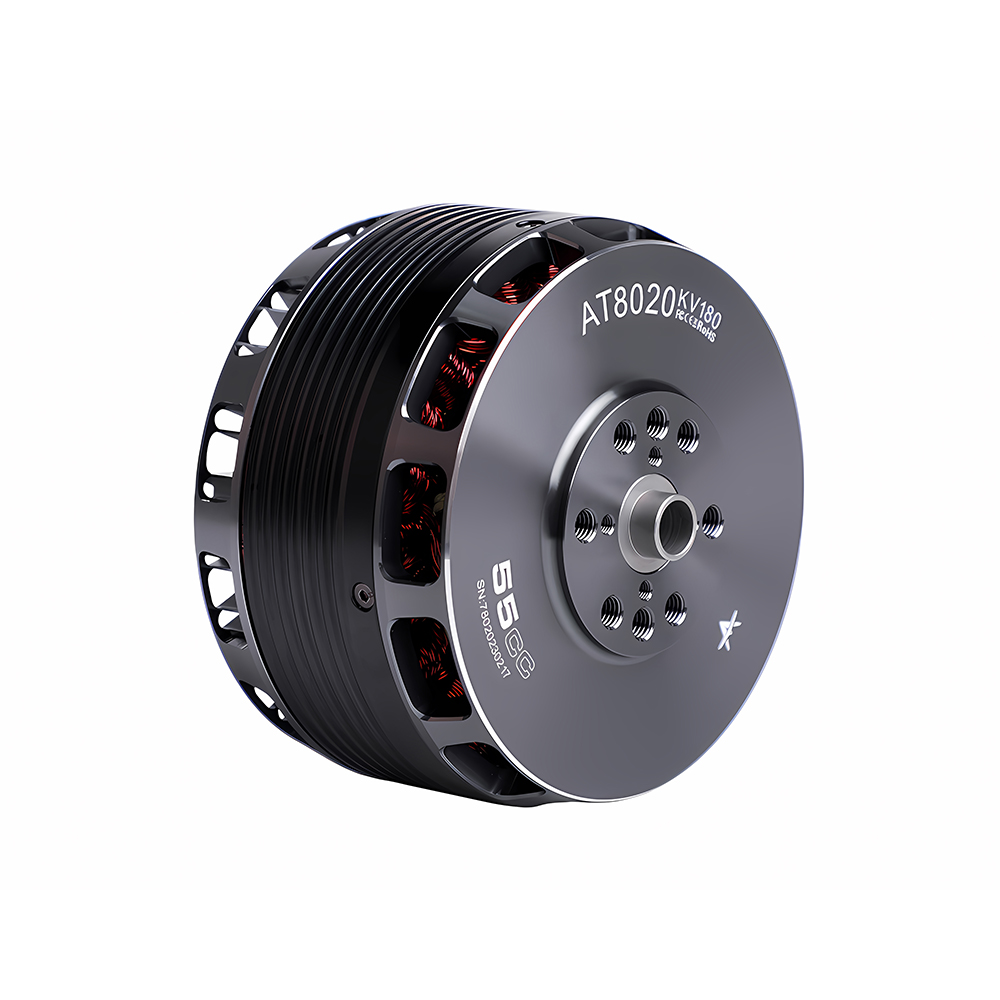

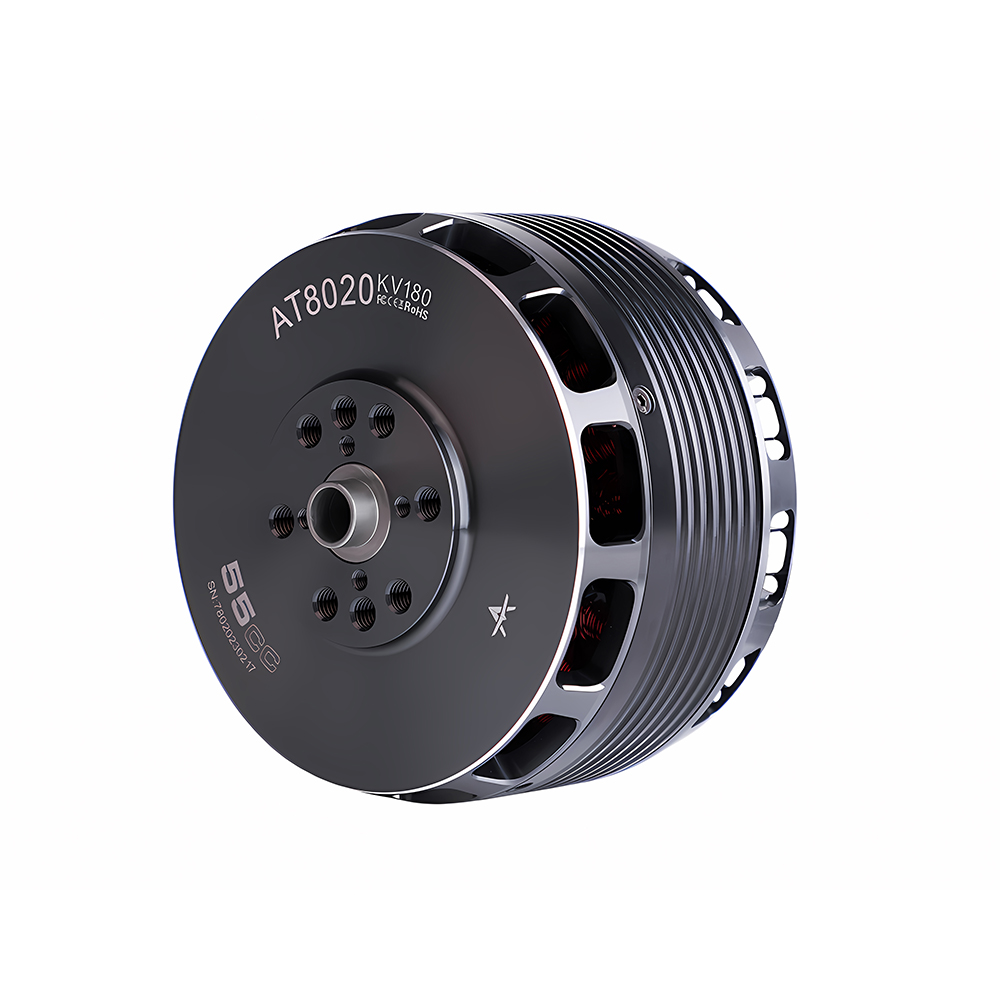

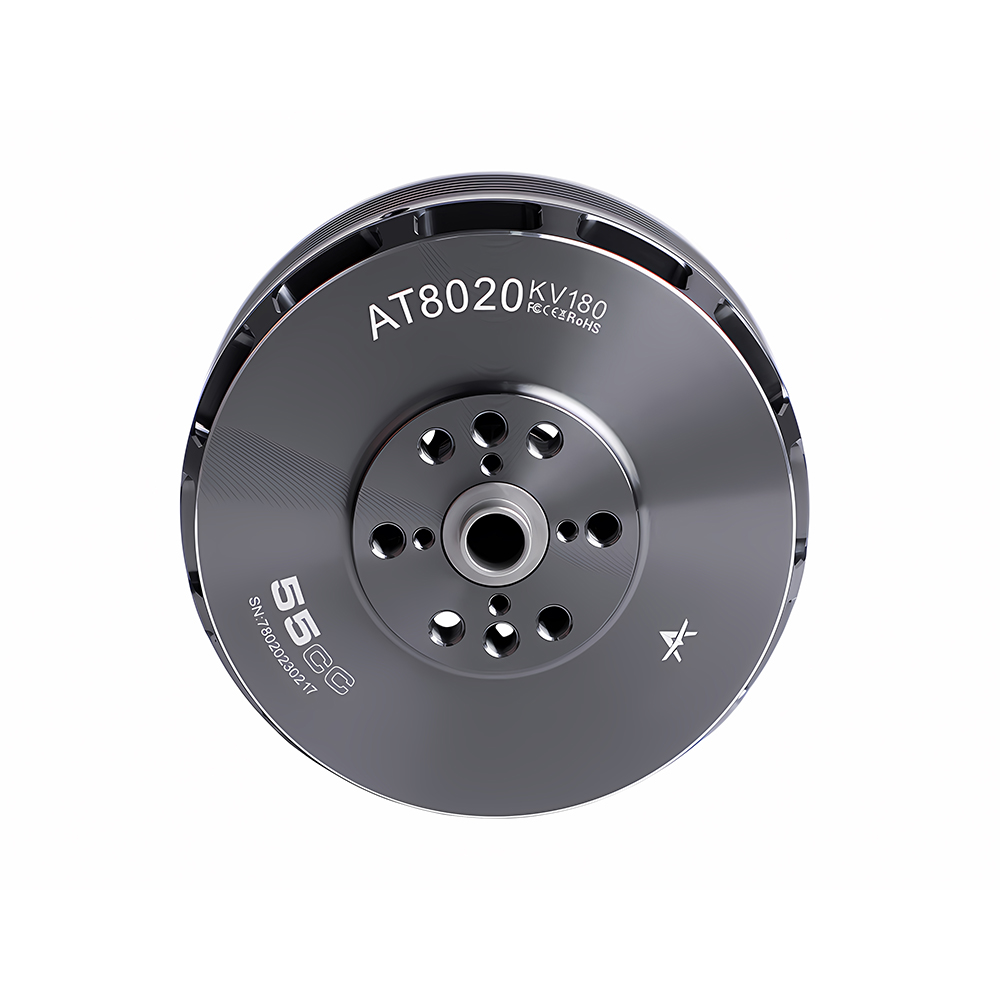

The T-MOTOR AT8020 is a high-performance brushless motor specifically designed for VTOL UAV fixed-wing aircraft with a wingspan of 2.2m to 3.3m and a take-off weight of approximately 40kg. Weighing only 870g. this motor delivers an impressive maximum thrust of 18kg and a peak power output of 5500W. making it an ideal choice for demanding aerial applications. The motor is compatible with 10-12S LiPo batteries and AT195A ESC. ensuring stable and efficient flight performance.

Key Features of AT8020 55CC Motor:

1. High-Efficiency Engine Replacement – Replaces 55cc engines in normal conditions and 70cc engines in high-speed. high-load flights.

2. Detachable Propeller Seat – Supports both fixed-wing and multi-rotor propellers for secure and easy locking.

3. Rear Output Shaft Safety – Compatible with a magnetic braiding system to maintain safe flight speeds.

4. Efficient Heat Dissipation – Uses centrifugal active cooling and a heat sink for optimal temperature control.

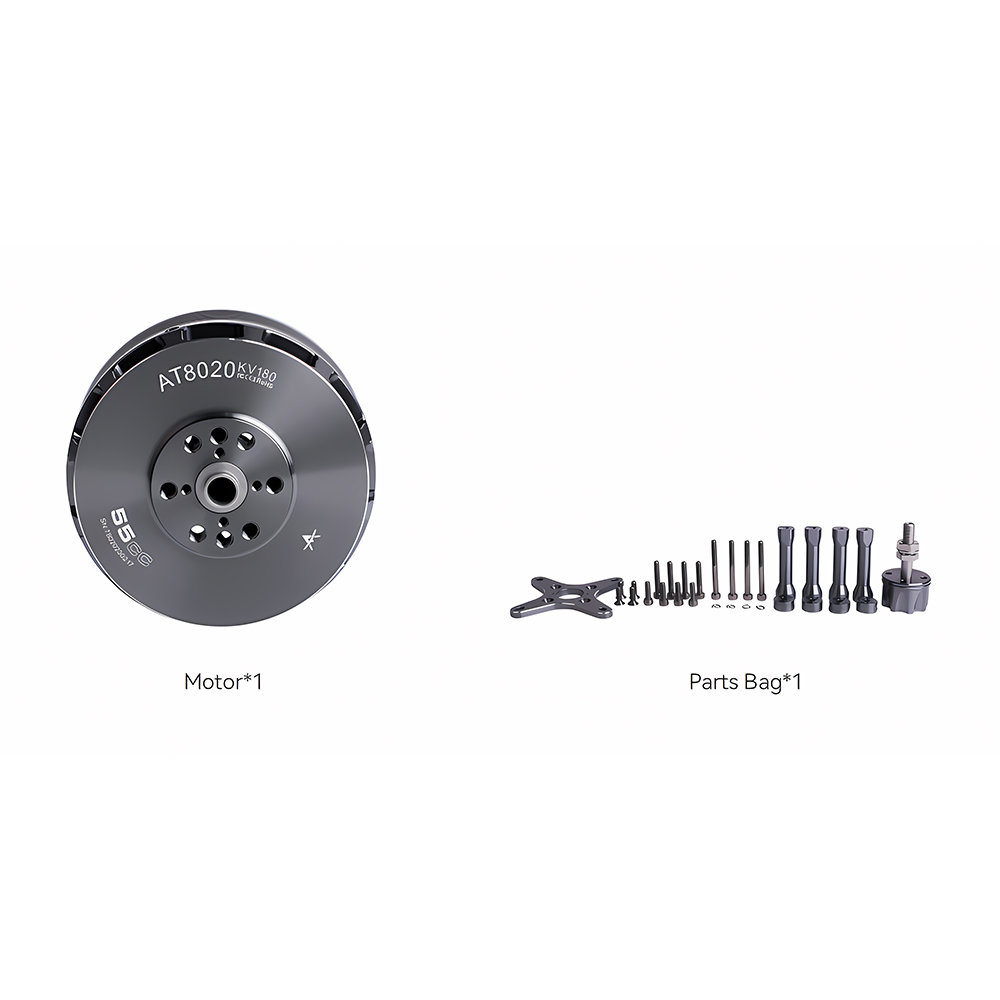

Packing List:

• 1x T-MOTOR AT8020 Motor

• 1x Hardware Kit

Recommended Pairing:

1. ESC: AT195A ESC

2. Battery: 10-12S LiPo battery

​
