T-MOTOR Velox Cine F7 Flight Controller – 8 Motor Outputs for X8 Cinelifter & Fixed-Wing

The Powerhouse for Advanced Builds – T-MOTOR Velox Cine F7

Engineered for ultimate versatility. the T-MOTOR Velox Cine F7 is more than just a flight controller; it’s a high-performance command center for your most ambitious projects. Whether you are building a heavy-duty X8 Cinelifter. a long-range Fixed-wing. or a precision Freestyle quad. the Cine F7 provides the processing power and connectivity you need.

With its integrated dual BEC and support for both Analog and HD digital systems. this FC simplifies your wiring while maximizing reliability. The onboard barometer and TVS protection diode ensure that your flight is not only precise but safe from voltage spikes.

Core Selling Points:

• 8 Motor Outputs: Native support for X8 configurations. making it the perfect brain for heavy-lift cinematic drones.

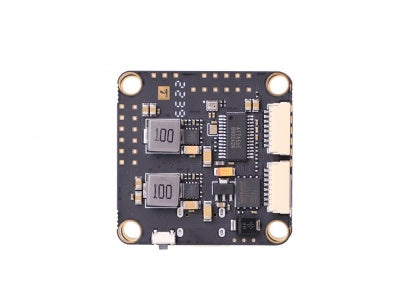

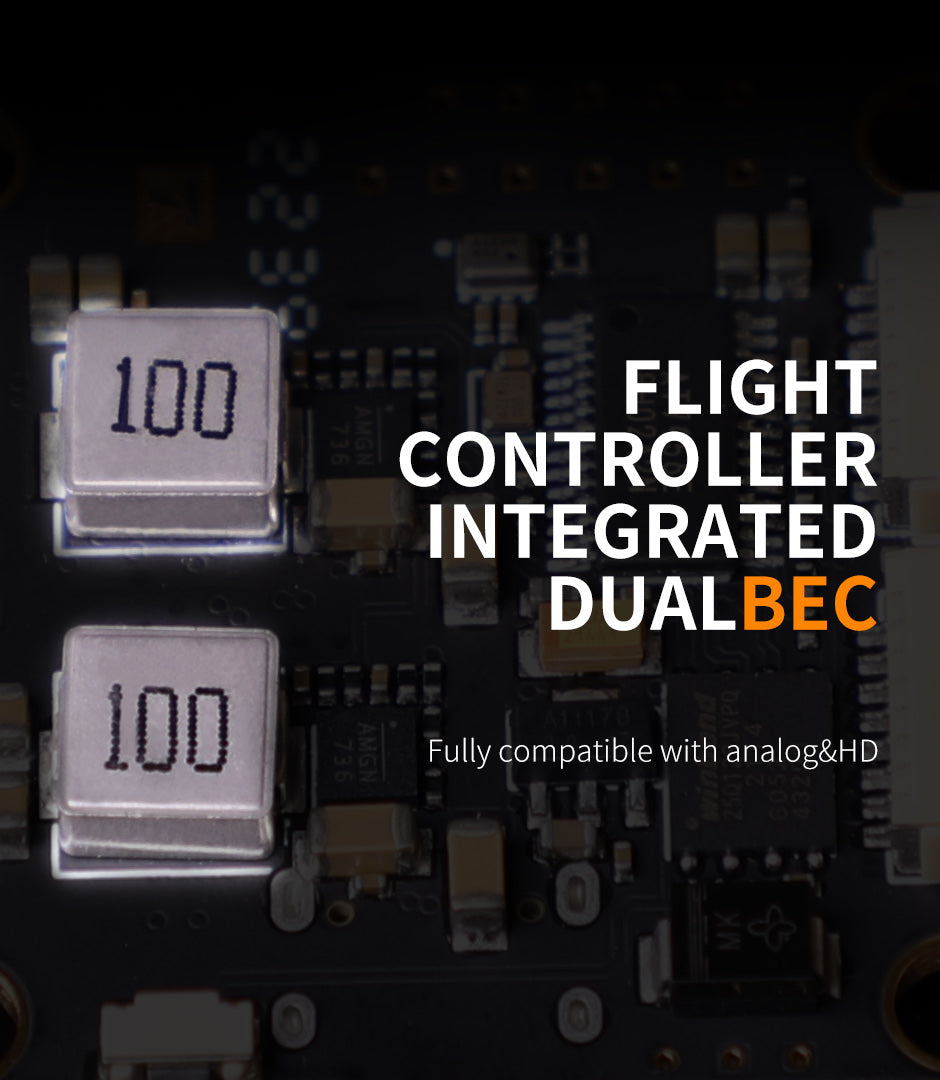

• Dual BEC System: Provides stable power for both your flight electronics and high-power peripherals like air units or servos.

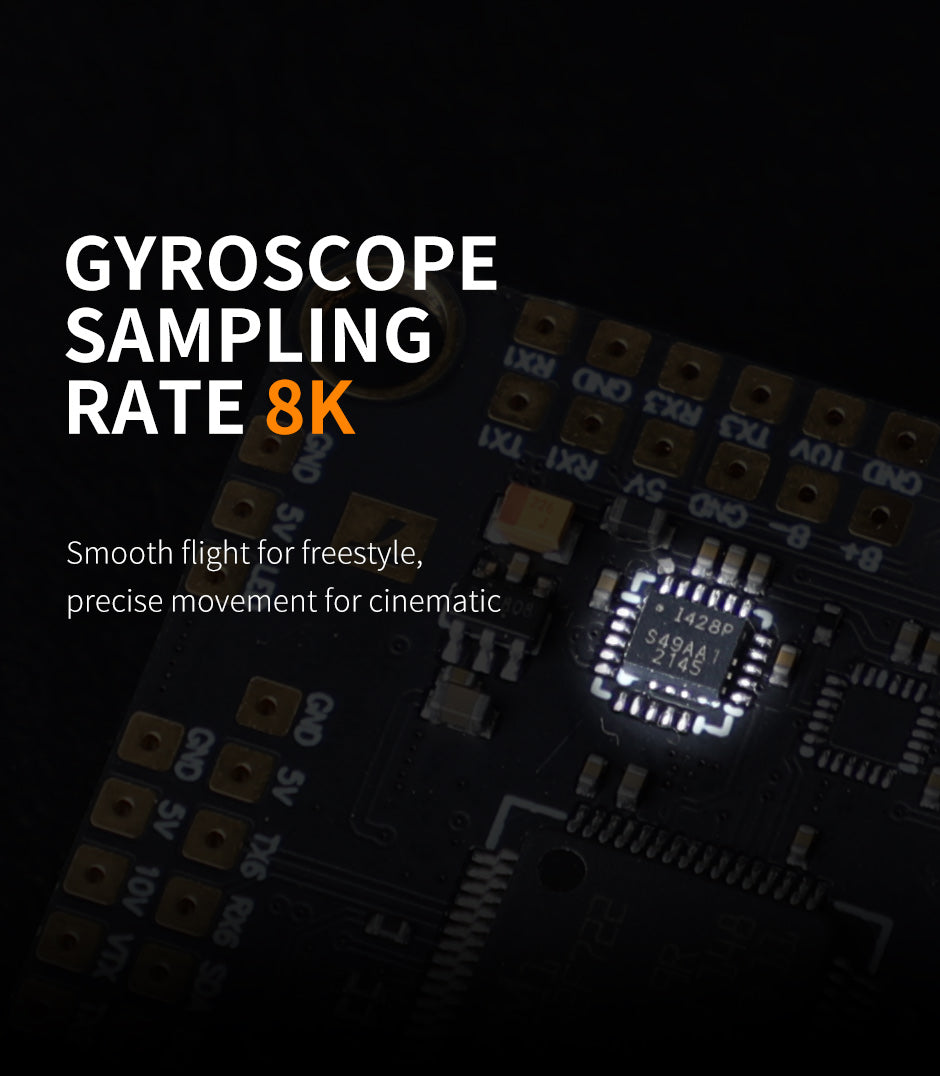

• Superior Stability: Equipped with the ICM-42688P gyro and SPL06 barometer for rock-solid altitude hold and flight smoothness.

• Rugged Protection: Onboard TVS diode protects your sensitive electronics from ESC back-EMF and power surges.

• Universal Compatibility: Standard 30.5mm mounting and broad firmware support (Betaflight) make it a drop-in upgrade for most professional frames.

Specifications

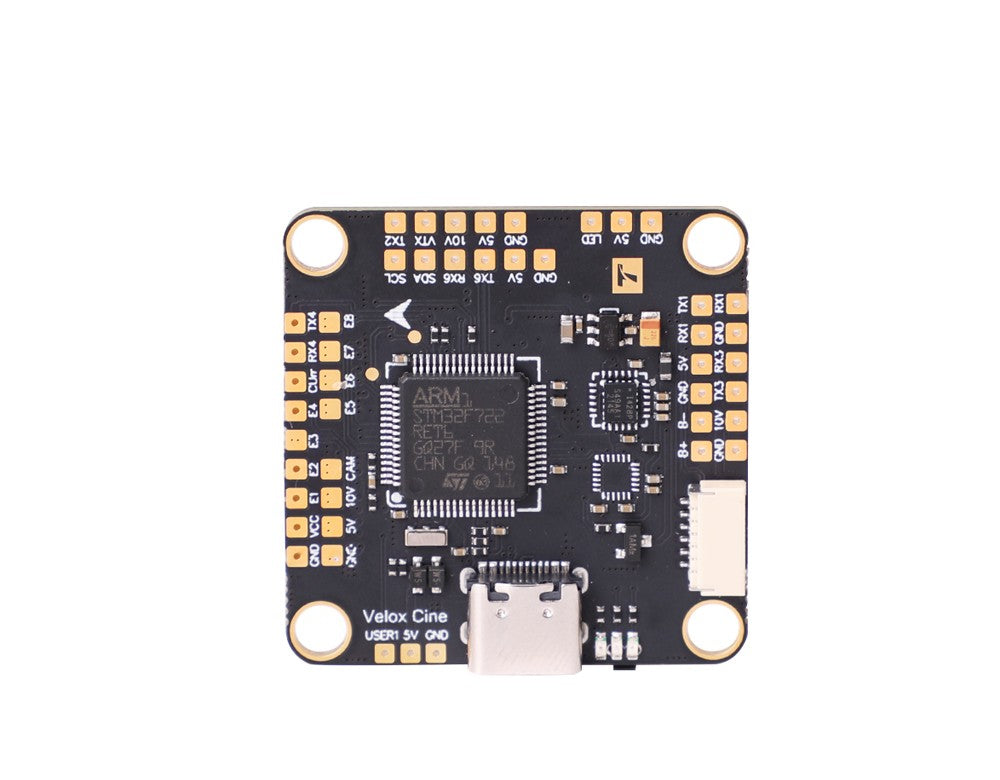

• MCU: STM32F722

• Gyro: ICM-42688P

• Barometer: SPL06

• OSD: AT7456 (Analog support)

• Flash Memory: 16MB Blackbox

• Input Voltage: 3-6S LiPo

• BEC Output: Dual BEC (Integrated)

• Motor Outputs: Supports up to 8 motors

• Mounting Pattern: 30.5 x 30.5mm / ⌀4mm

• Dimensions: 36 x 36 x 8mm

• Weight: 9.24g

• Firmware: TMTR-TMOTORVELOXF7V2 (Betaflight)

Expert Combo Recommendations

• ESC: Pairs perfectly with the T-MOTOR V50A 4-in-1 ESC for a clean stack.

• Motors: * For Cinelifter: T-MOTOR F90  or Cine99 series.

  • For Freestyle: Velox V3 or ITS 2306.5 motors.

• Digital System: Fully compatible with DJI O3 Air Unit. Walksnail Avatar. and HDZero.

• Frame: Optimized for X8 frames. 7-10 inch Long Range quads. and high-spec FPV Wings.
